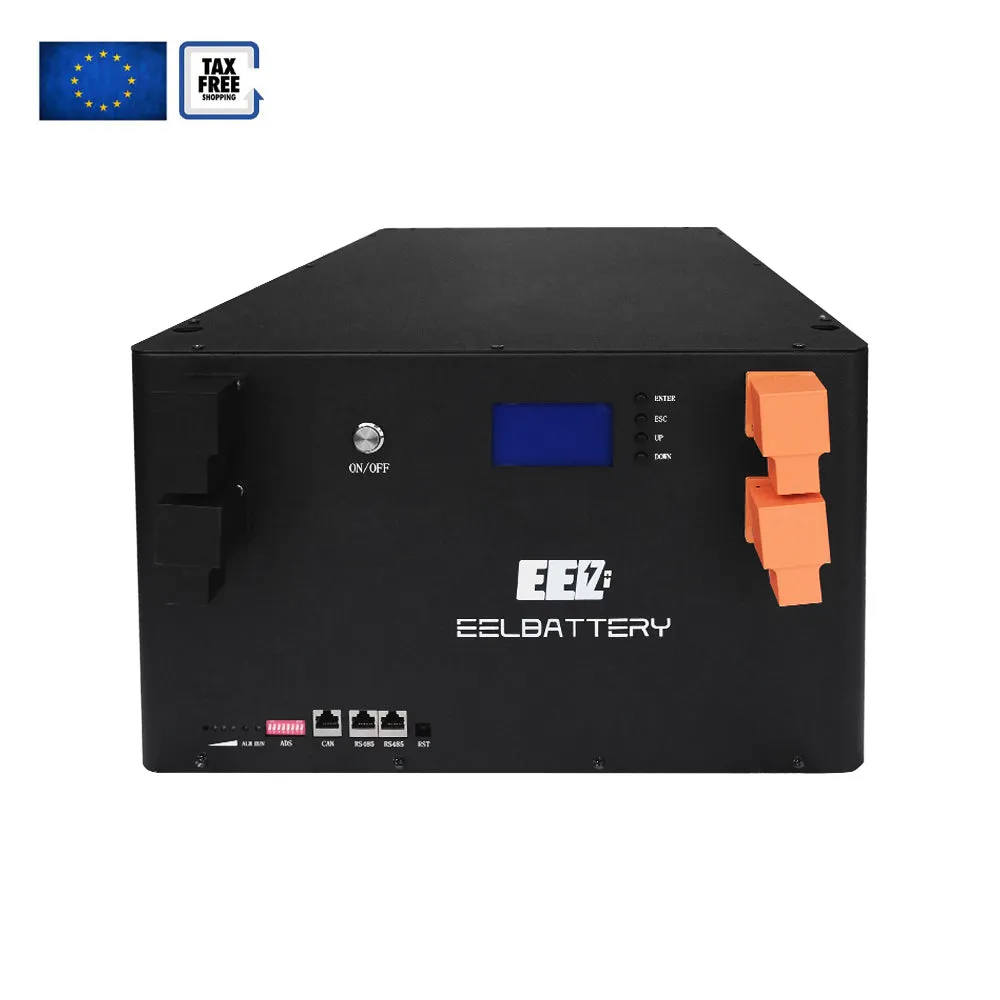

Specification
Battery Type:230/280/302/304Ah Cell
Material: Steel
Communication: CANBUS and RS485(accept both)

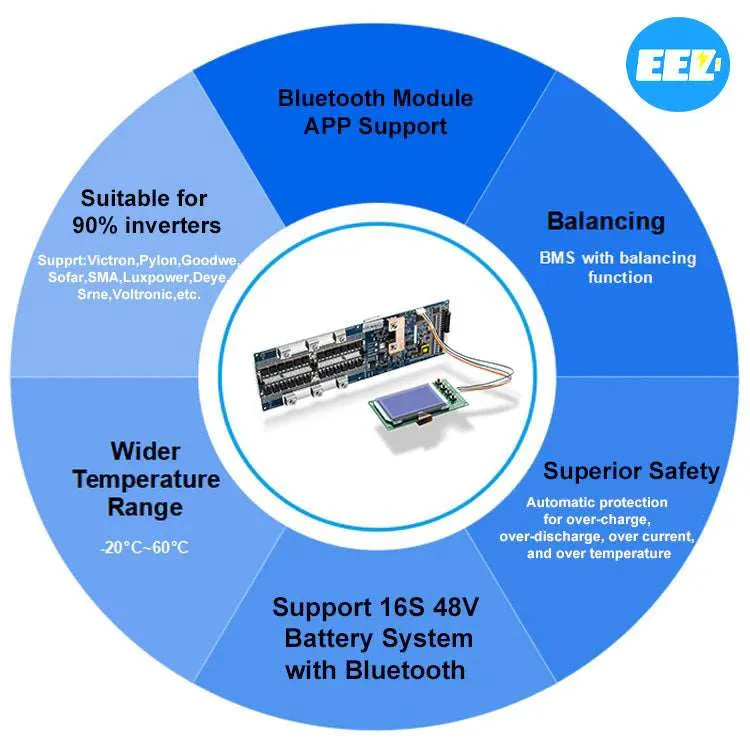

BMS: 48V 16S BMS
Nominal Voltage:51.2V
Current 100/150/200A
Warranty:5 Years
Battery Pack Type: Stackable
OEM/ODM: Available
Weight:25kg

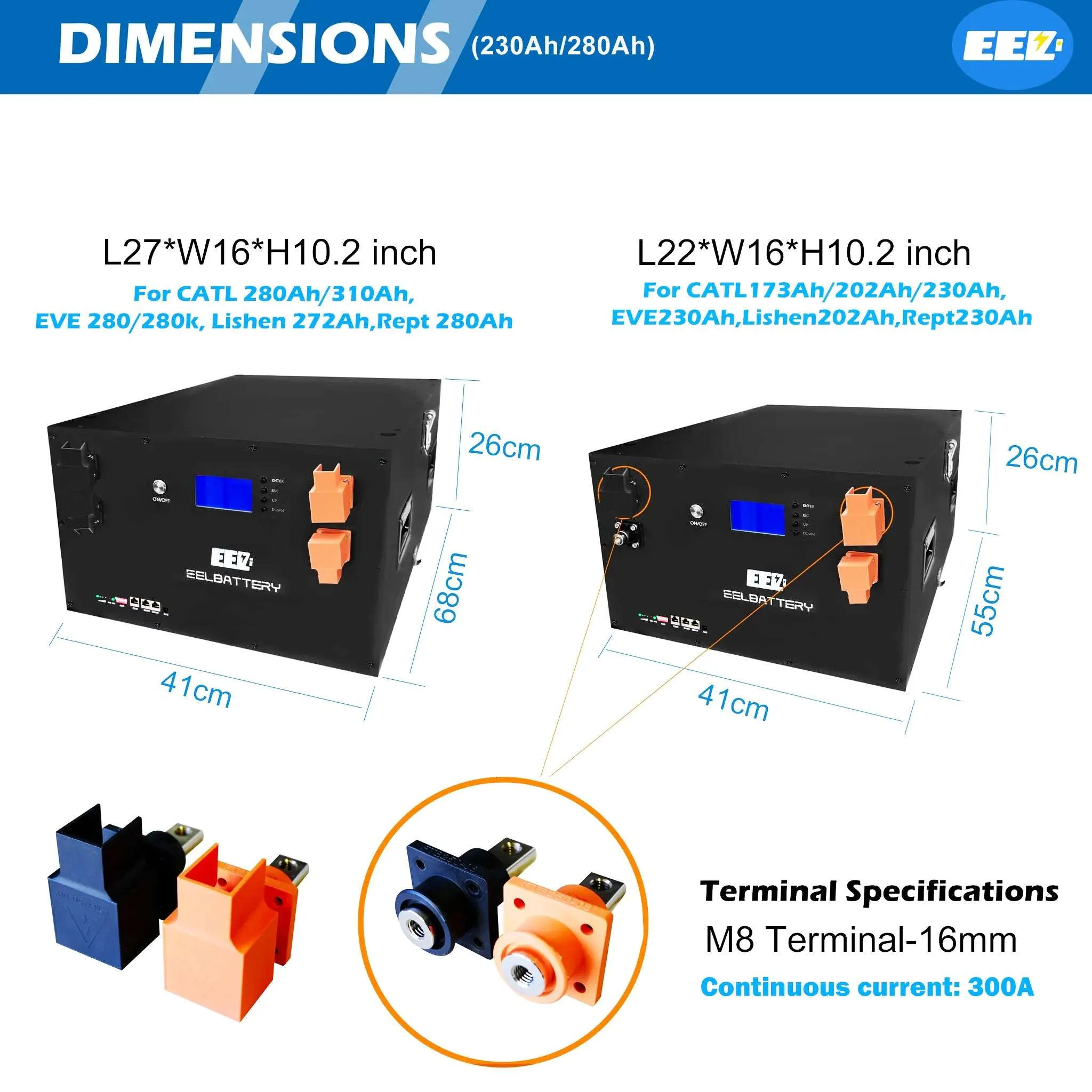

Size:415*700*263mm

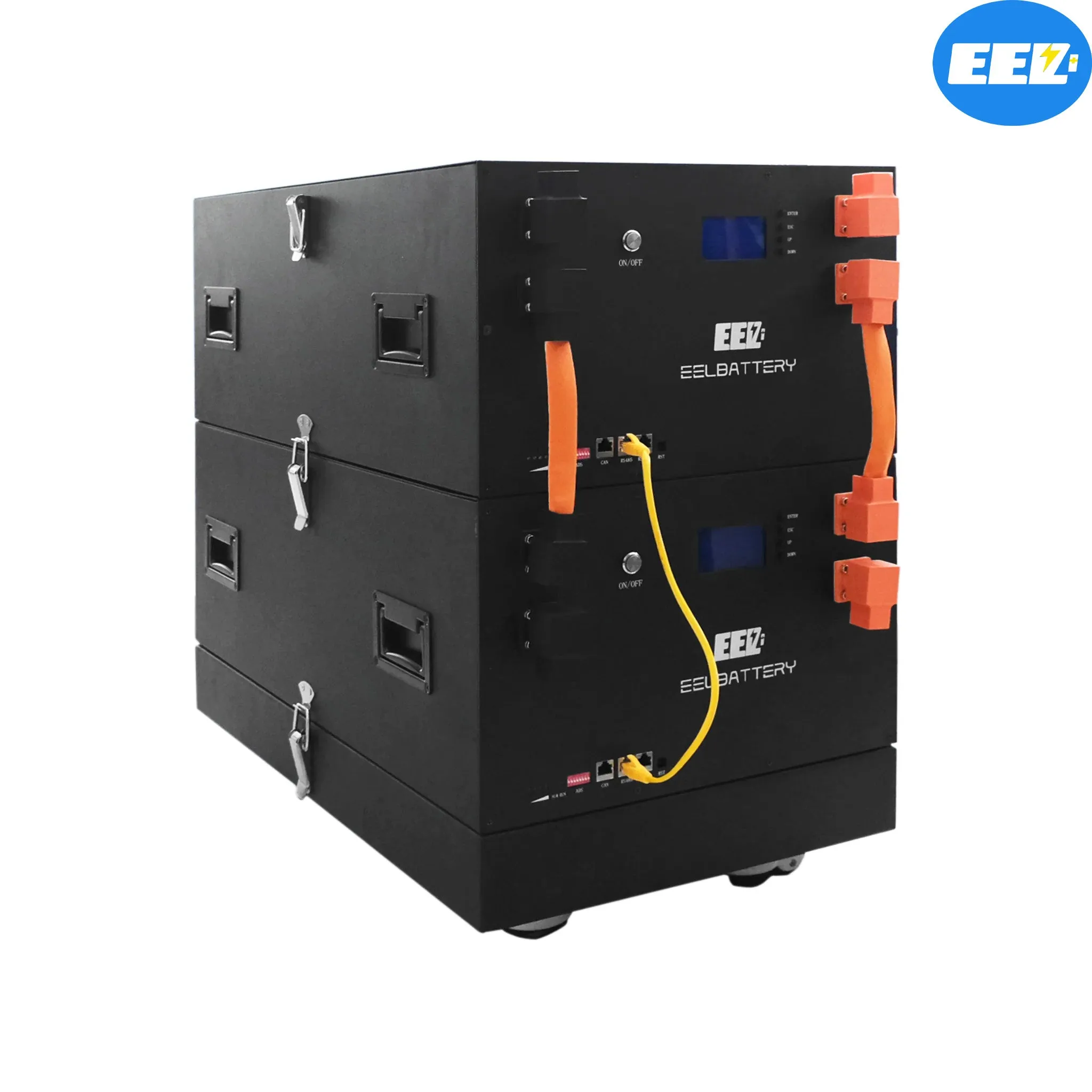

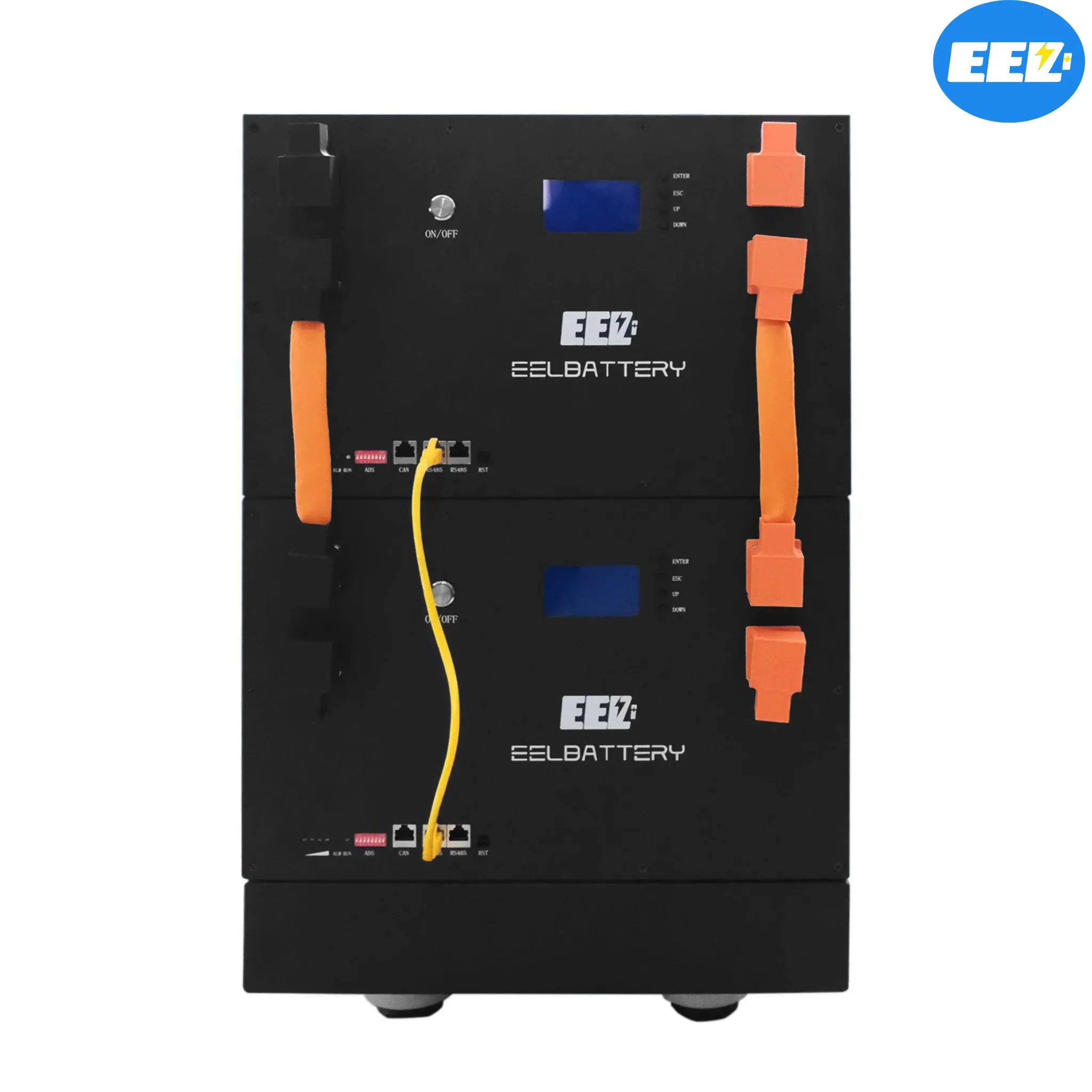

Stackable Type:up to 14 batteries

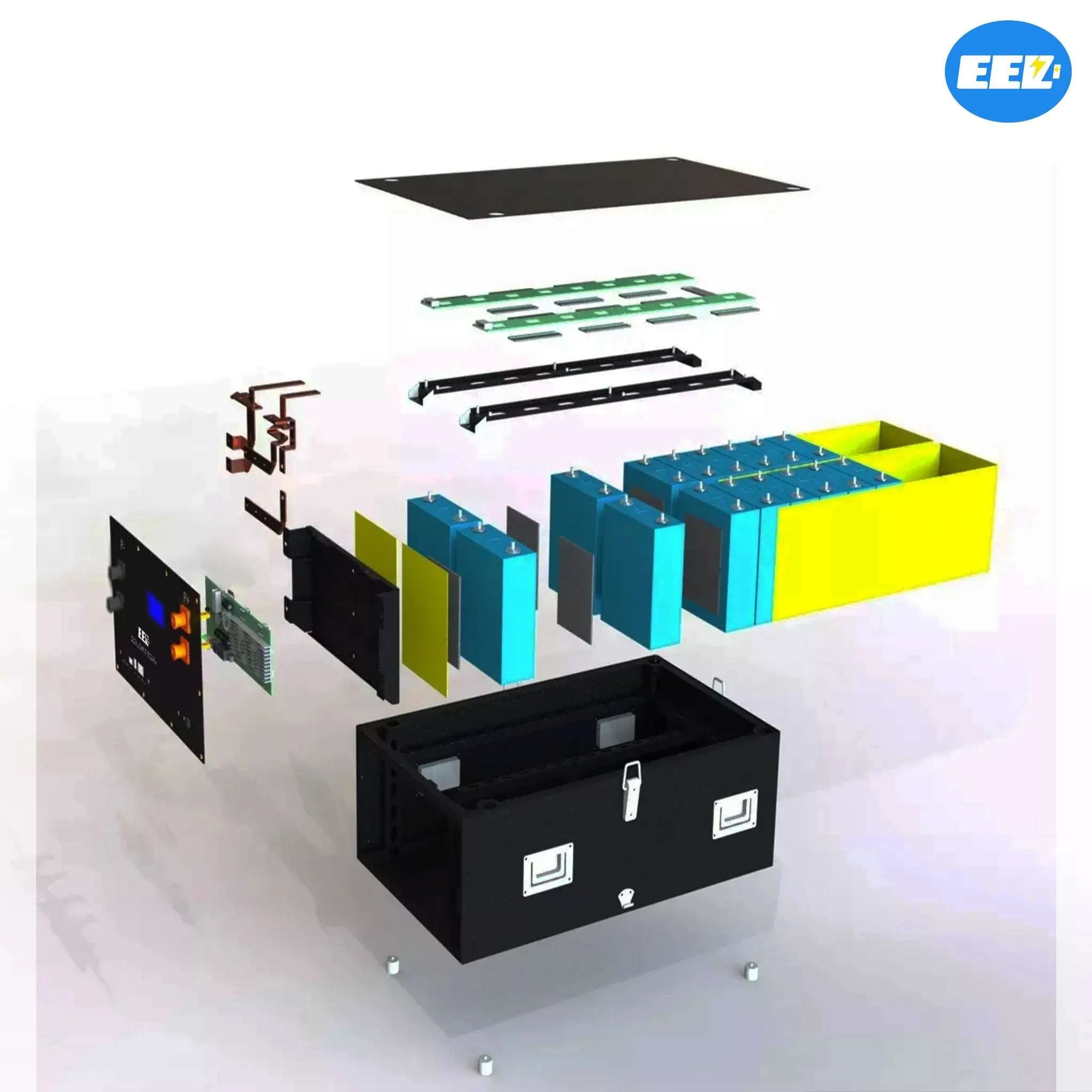

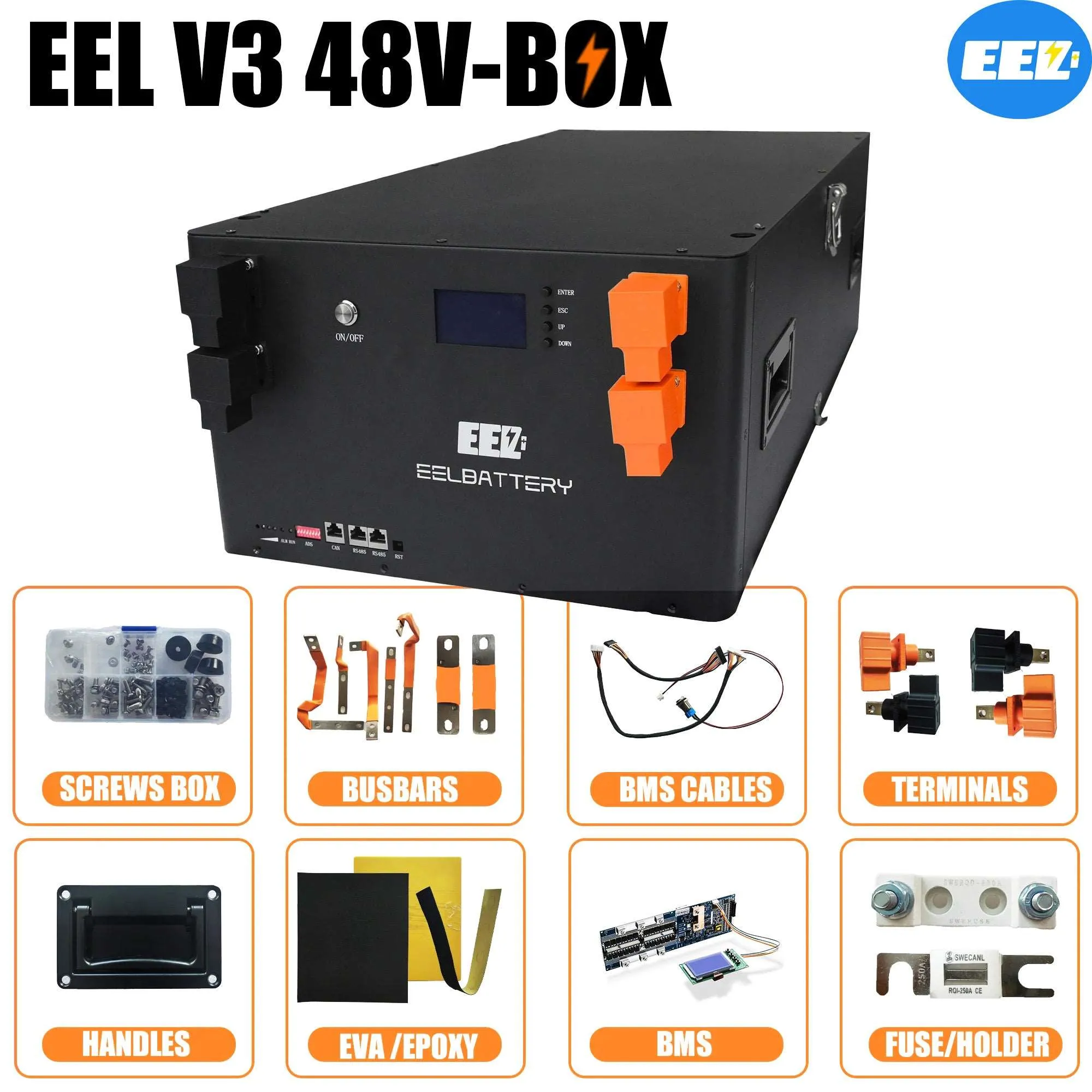

Parts List(does not come with the battery cells)
1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)
10 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection 2*matched EVA Tape
1 * Weak electric switch
1 * 48V 16S BMS 2*BMS wires 1*adapter fuse

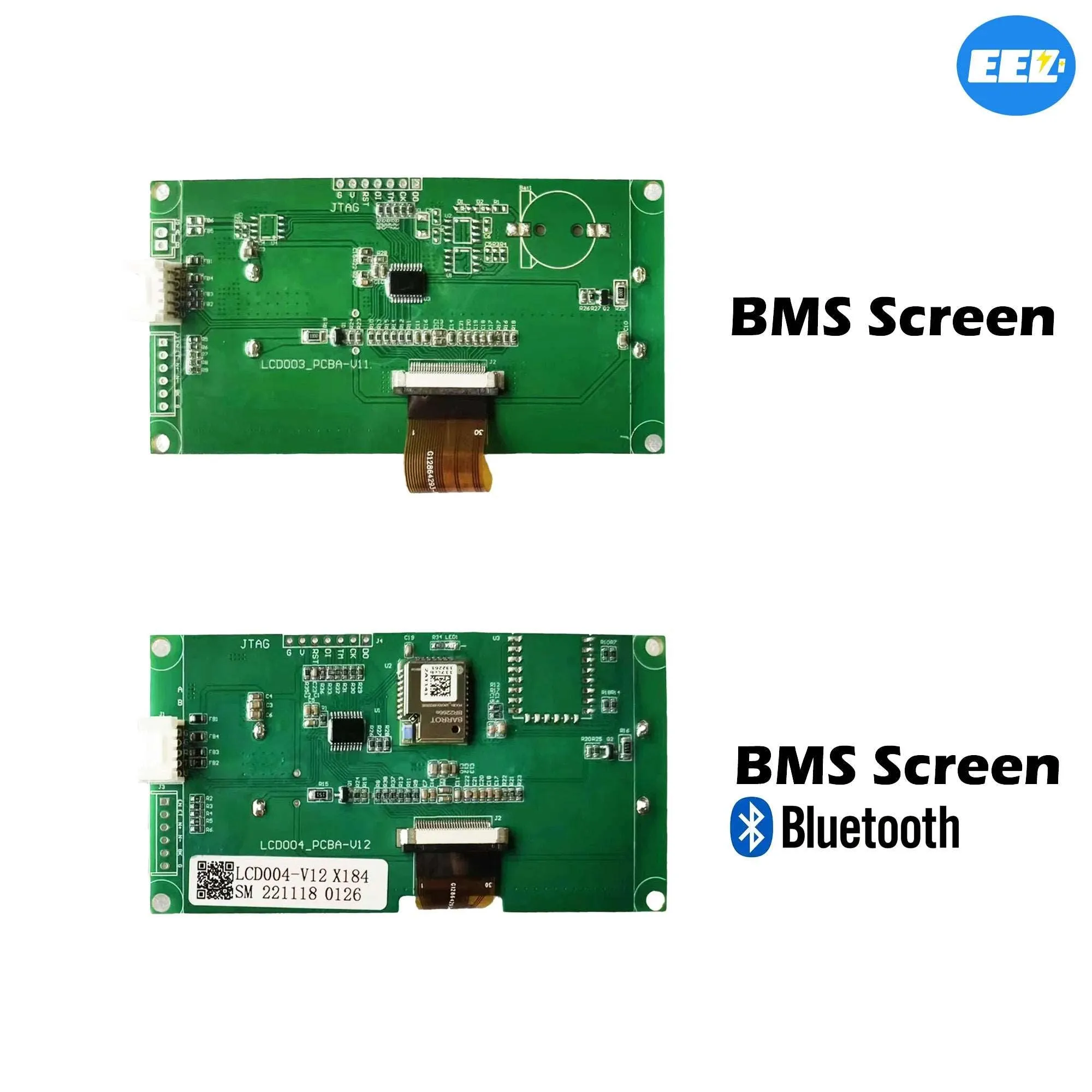

1 * LCD Screen 1*LCD Screen wire 4 * Button Cap
4 * Battery Terminals (P Terminal and P- Terminal)

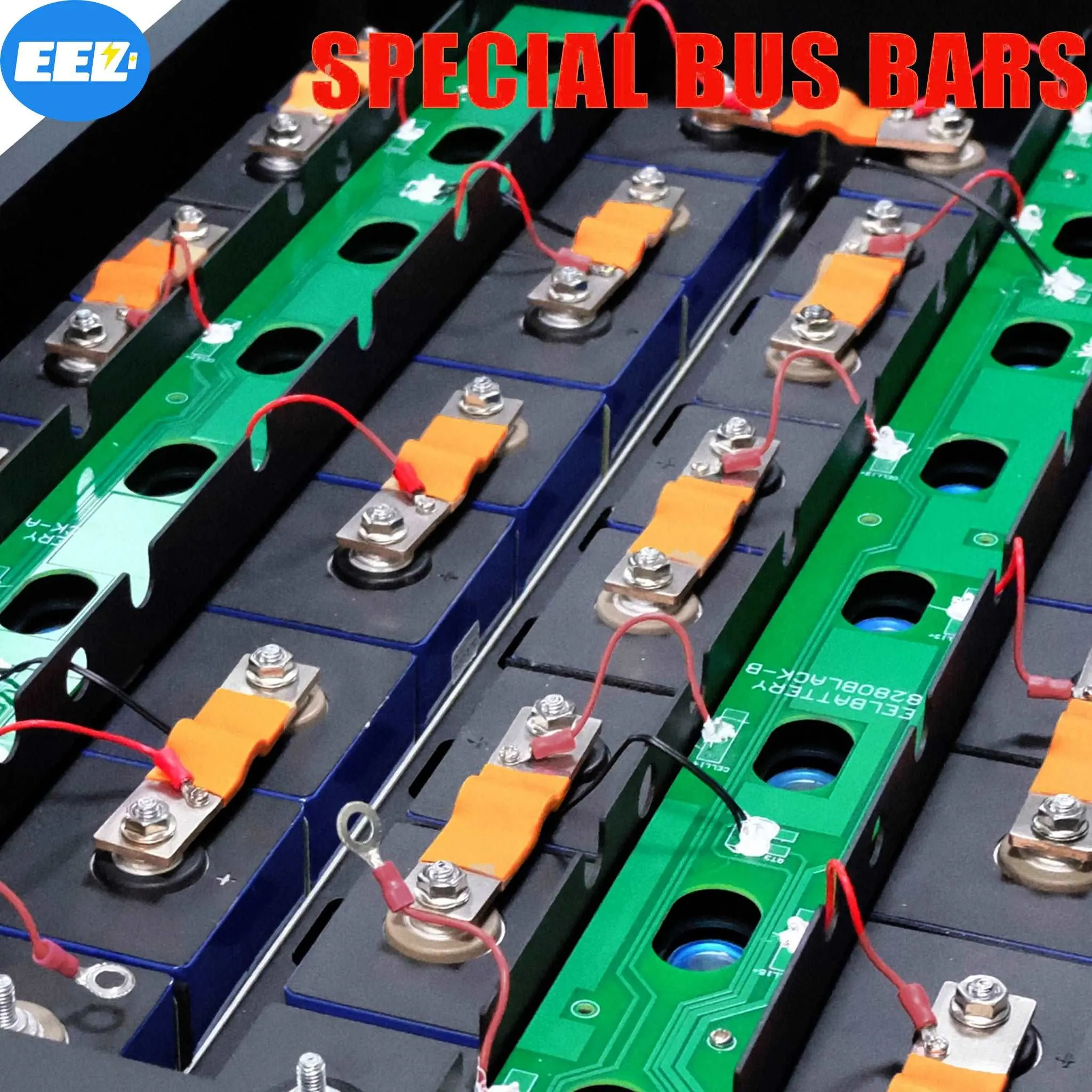

5* Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
4 * Handle
4 * Upper and Lower Latch lock
10 * EVA Tape (Between cells) and expoxy board

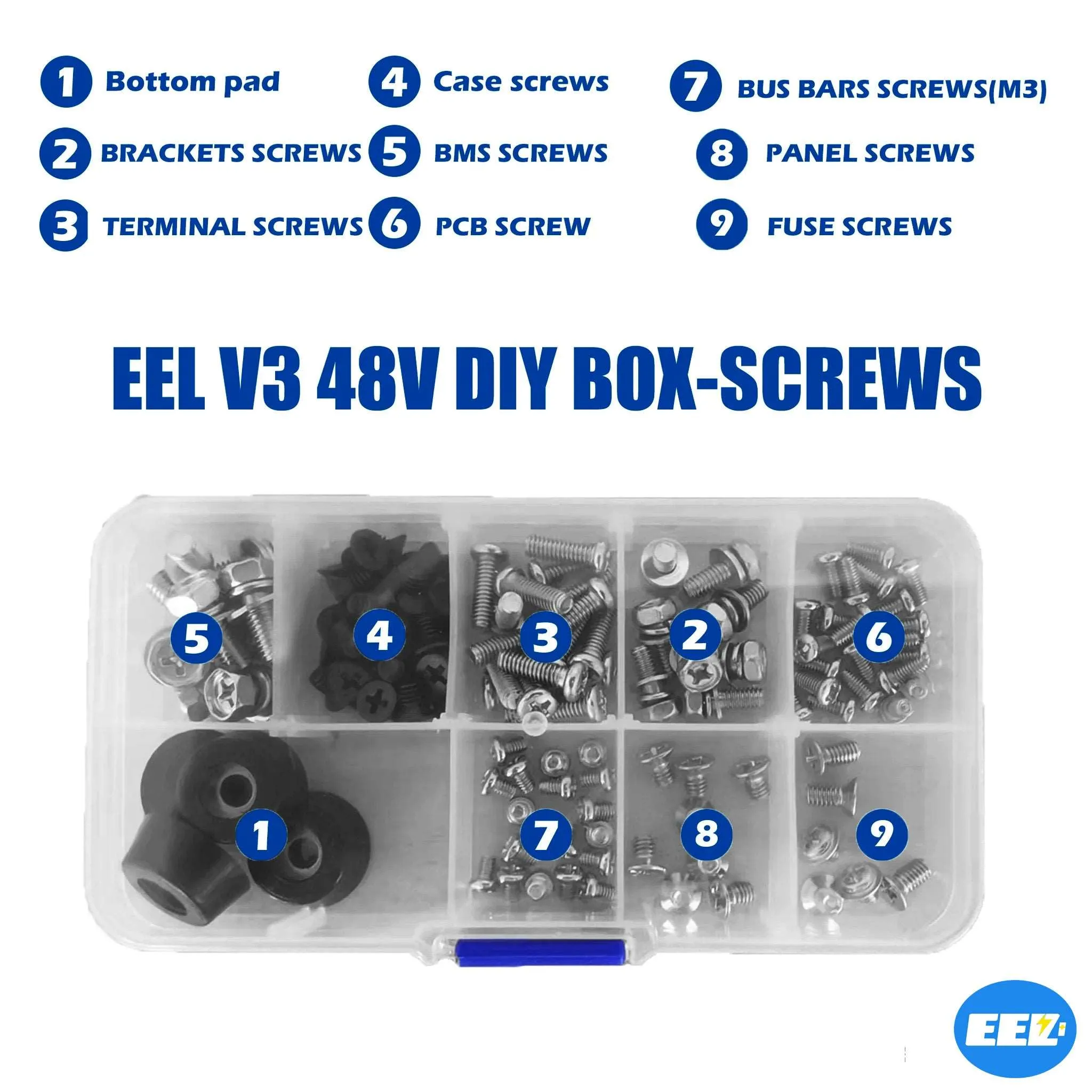

Other Small Accessories
DownLoad the software and manual:
Bluetooth App(Android):
Shipping method:
*The BMS and busbars will be shipped separately from China with 10-15 days delivery.
